ViewSonic LS740HD 1080p Laser Projector

ViewSonic LS740HD 5000 Lumens Full HD Laser Projector for Large Venues

The ViewSonic LS740HD is a high-brightness 1080p laser installation projector built for professional environments that demand powerful performance, long-term reliability, and flexible installation. Part of ViewSonic’s Luminous Superior series, this 5,000 ANSI Lumens projector is ideal for boardrooms, lecture halls, auditoriums, retail spaces, and public venues across Pune and Maharashtra.

At AVCore – Audio Video Consultants in Pune, we recommend the LS740HD for clients who need a lamp-free, low-maintenance projection solution with exceptional brightness, strong native contrast, and 24/7 operational capability.

Overview

Designed for Commercial & Educational Excellence

The LS740HD combines 3rd generation laser phosphor technology with Full HD resolution and advanced installation features. It projects ultra-large screens up to 300 inches while maintaining high clarity and color accuracy. Its compact chassis and lightweight design reduce transportation and installation effort, making it practical for integrators and facility managers alike.

Bright, Compact & Durable Performance

3rd Generation Laser Phosphor Technology

The advanced laser phosphor light source delivers:

• Up to 5,000 ANSI Lumens brightness

• Improved luminous efficiency (20% brighter than previous generation)

• Up to 30,000 hours lifespan (SuperEco mode)

• Instant power on/off

• No lamp replacement required

This lamp-free architecture significantly reduces maintenance costs and downtime, making it ideal for institutions and commercial environments in Pune that require consistent daily usage.

Powerful Brightness for Large Venues

5,000 ANSI Lumens for Any Lighting Condition

With 5,000 ANSI Lumens (5,500 center lumens), the LS740HD ensures:

• Clear visibility even in well-lit rooms

• Strong image presence in auditoriums and conference halls

• Crisp presentations in classrooms and training rooms

Whether installed in a corporate office or a university lecture theatre, it delivers vivid Full HD visuals without washing out.

Exceptional Image Quality

Native 1080p Full HD Resolution (1920 x 1080)

The LS740HD supports true 1080p projection, ensuring:

• Sharp text clarity

• Detailed charts and CAD drawings

• Smooth video playback

• Professional-grade presentation visuals

High Native Contrast Ratio – 3,000,000:1

Powered by a Texas Instruments 0.65” DMD chip, the projector produces:

• Deeper blacks

• Brighter whites

• Enhanced depth perception

• Improved legibility in fine details

This makes it especially suitable for business analytics, architectural drawings, and multimedia presentations.

Ultra-Large Display Capability

Up to 300” Screen Size

The LS740HD supports screen sizes from 30 inches to 300 inches, offering:

• Lower cost-per-inch compared to LED displays

• Massive visual impact for events and exhibitions

• Ideal solution for auditoriums and public venues

100” projection can be achieved at approximately 2.50 meters, depending on setup.

Installation Flexibility

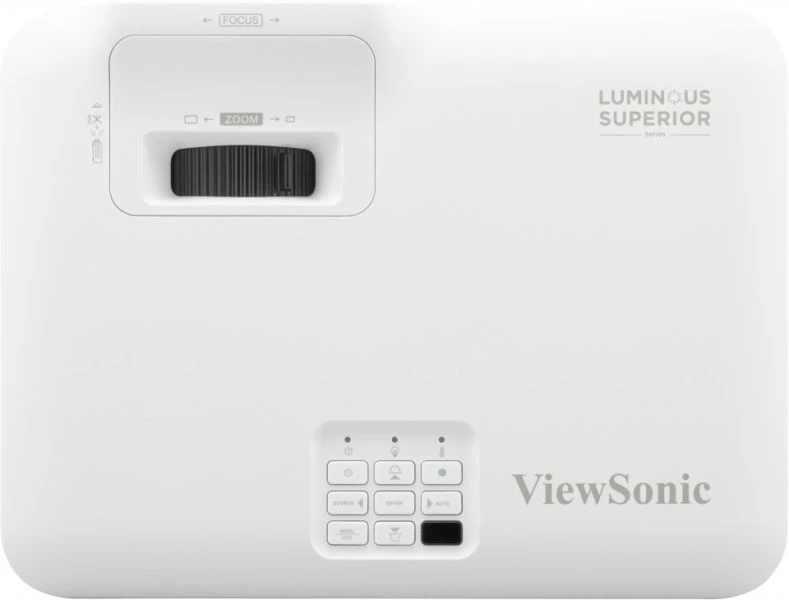

1.3x Optical Zoom

The 1.3x optical zoom allows flexible placement without physically moving the mount. This helps preserve interior design while achieving the desired image size.

Wide Throw Ratio (1.13 – 1.47)

Supports flexible mounting distances from 0.75m to 9.76m.

H/V Keystone Correction & 4 Corner Adjustment

• Horizontal Keystone: ±30°

• Vertical Keystone: ±30°

• 4-Corner Image Correction

These features eliminate distortion and ensure perfectly aligned images even in challenging installation environments.

360° Projection & Portrait Mode

• Full vertical rotation capability

• 90° portrait orientation

Perfect for:

• Projection mapping

• Retail advertising displays

• Museums

• Creative installations

24/7 Continuous Operation

Built for Non-Stop Usage

The advanced cooling system enables 24/7 operation without performance degradation. This makes it suitable for:

• Retail stores

• Airports

• Museums

• Command centers

• Public information displays

Energy Efficient & Cost Effective

Reduced Power Consumption

• Normal Mode: 210W

• Standby: <0.5W

• Up to 51% lower power consumption compared to lamp-based competitors

Lower energy usage translates into reduced operational costs for businesses and institutions.

Enhanced Durability

IP6X Sealed Optical Engine

The sealed engine prevents dust intrusion, ensuring:

• Longer product lifespan

• Stable brightness performance

• Reduced maintenance frequency

Ideal for Indian environments where dust can impact traditional projectors.

Connectivity & I/O Ports

Input & Output Options

• HDMI x 2 (HDMI 1.4 / HDCP 1.4)

• Audio Out (3.5mm)

• RS232 (Control)

• USB Type-A (5V/1.5A power output)

• USB Type-A (Service)

The built-in 5V/1.5A USB output powers wireless HDMI dongles directly, eliminating external adapters.

Built-in Audio

15W Integrated Speaker

The built-in 15W speaker provides sufficient sound output for small to medium meeting rooms without requiring external speakers.

Technical Specifications

Projection System

• 0.65″ 1080P DMD

Brightness

• 5,000 ANSI Lumens

• 5,500 Center Lumens

Contrast Ratio

• 3,000,000:1

Light Source Life

• Normal Mode: 20,000 hours

• SuperEco Mode: 30,000 hours

Throw Distance

• 0.75 – 9.76 meters

Image Size

• 30” – 300”

Noise Level

• Normal: 30dB

• Eco: 24dB

Input Lag

• 49.5ms

Weight & Dimensions

• Net Weight: 3.0 kg

• Dimensions: 286 x 216 x 129 mm

Operating Temperature

• 0°C to 40°C

What’s in the Box

Standard Accessories

• LS740HD Projector

• Power Cord

• Remote Control

• Quick Start Guide

• Warranty Card (Region-specific)

Optional Accessories

• Wall/Ceiling Mount (PJ-WMK-007)

• Carry Bag (PJ-CASE-008)

Ideal Applications

Corporate

• Boardrooms

• Conference halls

• Training rooms

Education

• Classrooms

• Lecture halls

• Seminar rooms

Commercial

• Retail displays

• Museums

• Public information systems

Frequently Asked Questions (FAQs)

1. Is the LS740HD suitable for bright rooms?
   Yes. With 5,000 ANSI Lumens, it performs well even in well-lit classrooms and offices.
2. Does it require lamp replacement?
   No. It uses a laser phosphor light source with up to 30,000 hours lifespan, eliminating lamp replacement costs.
3. Can it run continuously?
   Yes. The LS740HD supports 24/7 operation, making it suitable for continuous-use environments.
4. What is the maximum screen size supported?
   It supports projection up to 300 inches.
5. Does it support ceiling installation?
   Yes. It supports ceiling mounting, 360° projection, and portrait mode.
6. Is it suitable for gaming?
   It has an input lag of 49.5ms. While it can handle casual gaming, it is primarily designed for business and installation applications.
