ViewSonic LS711WP WXGA Short Throw Laser Projector

ViewSonic LS711WP Projector 4,200 ANSI Lumens WXGA Short Throw Laser Installation Projector

The ViewSonic LS711WP is a high-brightness, lamp-free WXGA short throw laser projector engineered for professional installations in classrooms, corporate meeting rooms, retail environments, galleries, gyms, and large commercial spaces. Designed with 3rd generation laser phosphor technology, this model delivers 4,200 ANSI Lumens, exceptional native contrast, and up to 30,000 hours of maintenance-free performance.

At AVCore – Audio Video Consultants in Pune, Maharashtra, we recommend the LS711WP for clients who need bright, shadow-free projection, flexible installation options, and long-term operational reliability.

Product Overview

The LS711WP is part of ViewSonic’s Luminous Superior Series — a professional lineup created for high-performance commercial and educational environments.

With its 0.52 short throw ratio, it can project a 100-inch image from just 1.12 meters away. This reduces shadows and glare while maximizing space efficiency. Its compact and lightweight chassis simplifies transportation and installation, making it an excellent choice for projects across Pune and Maharashtra.

Advanced Features & Technology

1. 3rd Generation Laser Phosphor Light Source

The LS711WP incorporates advanced 3rd-gen laser phosphor technology that offers:

• Approximately 20% improved brightness efficiency

• Higher luminous consistency across long hours

• 32% more compact design compared to earlier generations

• Instant power on/off functionality

• No lamp replacements required

• Up to 30,000 hours lifespan in SuperEco mode

This ensures lower total cost of ownership and minimal maintenance over the projector’s life cycle.

2. Powerful 4,200 ANSI Lumens Brightness

With 4,200 ANSI Lumens (5,000 center lumens), the LS711WP delivers:

• Clear visibility in well-lit classrooms

• Vibrant projection in retail stores

• Bright displays in gyms and auditoriums

• Crisp images in conference rooms

Even in environments with high ambient light, content remains sharp and readable.

3. WXGA Native Resolution – Optimized for Business & Education

The projector features a 1280 x 800 WXGA resolution, ideal for:

• Presentation slides

• Excel sheets and reports

• Training programs

• Educational lessons

• Business meetings

It supports input signals up to WUXGA (1920 x 1200), ensuring compatibility with modern devices.

4. High Native Contrast with 0.65” DMD Chip

Equipped with a premium 0.65″ DMD chip from Texas Instruments, the LS711WP provides:

• Deep black levels

• Brighter whites

• Enhanced depth perception

• Clearer text rendering

• Better detail in charts and graphics

The 3,000,000:1 contrast ratio enhances visual clarity in all types of content.

5. 0.52 Short Throw Ratio – Shadow-Free Experience

The short throw design allows:

• 100” screen at only 1.12m

• Reduced presenter shadow

• Minimal glare

• Seamless edge blending capability

• Efficient use of compact spaces

This makes it perfect for interactive classrooms and training rooms.

6. Ultra-Large 300” Projection Capability

The LS711WP supports screen sizes from 35 inches to 300 inches, offering:

• Lower cost per inch compared to large LED panels

• Immersive viewing experiences

• Scalable installation flexibility

• Ideal solution for auditoriums and halls

7. Flexible & Professional Installation Options

Designed for system integrators, the LS711WP includes:

• Horizontal Keystone ±15°

• Vertical Keystone ±15°

• 4 Corner Adjustment

• 360° projection capability

• 90° portrait mode

• Digital Zoom (0.8x–2.0x)

It supports ceiling, wall, and creative projection installations.

AVCore provides professional mounting, alignment, and calibration services across Pune.

8. 24/7 Continuous Operation

The advanced cooling system enables uninterrupted 24/7 projection without image degradation. Suitable for:

• Retail display environments

• Airports

• Museums

• Shopping malls

• Public information displays

9. IP6X Sealed Optical Engine

The sealed engine design prevents dust intrusion.

Benefits include:

• Longer product lifespan

• Stable brightness performance

• Reduced maintenance

• Lower operational costs

This feature is especially beneficial in Indian environments with higher dust levels.

10. Energy Efficient & Cost Effective

• Power Consumption (Normal): 210W

• Standby Mode: <0.5W

• Up to 40% lower energy usage compared to lamp-based models

No lamp replacement + lower power usage = long-term savings.

11. Direct USB Power Output

Built-in USB Type-A (5V/1.5A) port allows:

• Direct powering of wireless HDMI dongles

• Cleaner installation

• No external adapters required

Technical Specifications

Projection

• Projection System: 0.65″ WXGA DLP

• Native Resolution: 1280 x 800

• Brightness: 4,200 ANSI Lumens

• Center Lumens: 5,000

• Contrast Ratio: 3,000,000:1

• Display Colors: 1.07 Billion

• Light Source: Laser Phosphor

Light Source Life

• Normal Mode: 20,000 hours

• SuperEco Mode: 30,000 hours

Lens & Throw

• Throw Ratio: 0.521

• Projection Offset: 125% ±10%

• Image Size: 35”–300”

• Throw Distance: 0.39–3.37m

• 100” Screen at: 1.12m

• Optical Zoom: Fixed

• Digital Zoom: 0.8x–2.0x

Audio

• Built-in Speaker: 15W

• Audio Out (3.5mm): Yes

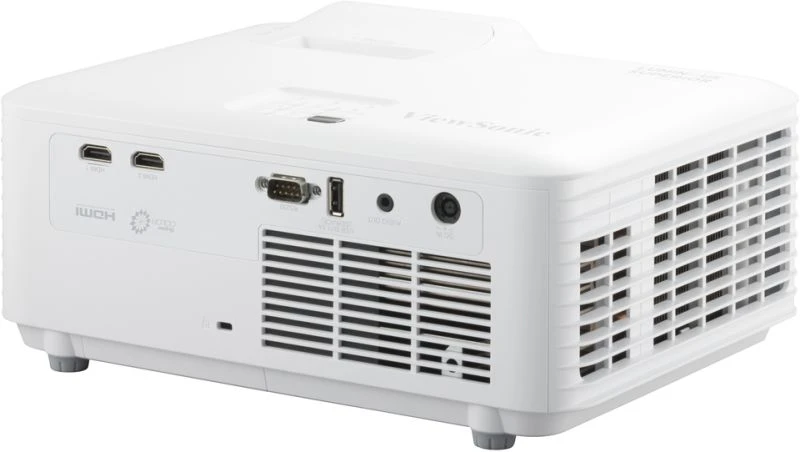

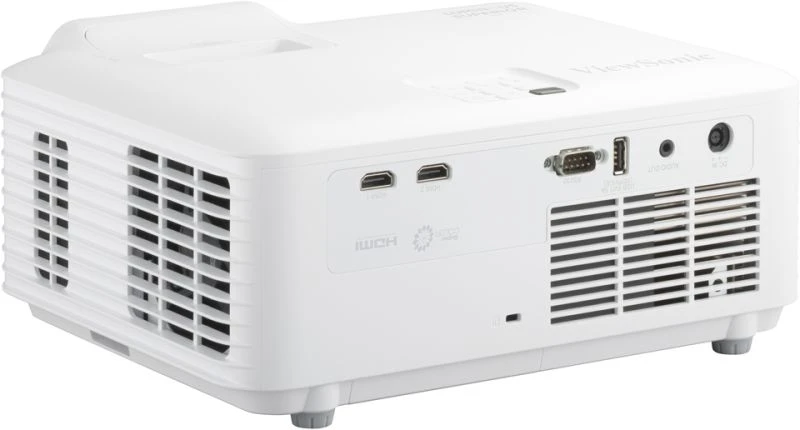

Connectivity

• HDMI 1.4 x2 (HDCP 1.4)

• USB Type-A (Power 5V/1.5A)

• USB Type-A (Service)

• RS232 (DB 9-pin male)

• DC In

Performance

• Input Lag: 49.5ms

• Noise Level: 30dB (Normal), 24dB (Eco)

• 24/7 Operation: Supported

Physical

• Net Weight: 3.15 kg

• Gross Weight: 4.88 kg

• Dimensions: 286 x 216 x 129 mm

• Operating Temperature: 0–40°C

What’s in the Box

• ViewSonic LS711WP Projector

• Power Cord

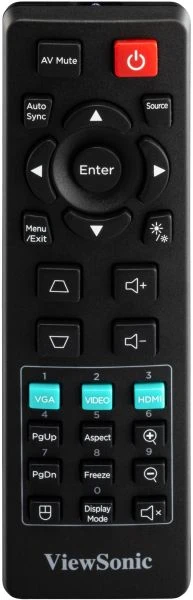

• Remote Control

• Quick Start Guide

• Lens Cover

• Warranty Card (region specific)

Optional Accessories:

• Wall/Ceiling Mount (PJ-WMK-007)

• Carry Bag (PJ-CASE-008)

AVCore offers complete installation packages including projection screens and mounting solutions.

Frequently Asked Questions (FAQs)

1. Is the LS711WP suitable for bright classrooms?
   Yes. With 4,200 lumens brightness, it performs well in well-lit environments.
2. Does this projector require lamp replacement?
   No. It uses a laser light source with up to 30,000 hours lifespan.
3. Can it run continuously for digital signage?
   Yes. It supports 24/7 operation without performance degradation.
4. What is the maximum screen size supported?
   Up to 300 inches.
5. Is it suitable for compact rooms?
   Yes. The 0.52 short throw ratio allows large projection from a short distance.
6. Does AVCore provide installation in Pune?
   Yes. AVCore – Audio Video Consultants offer professional installation and support across Pune and Maharashtra.

Why Buy from AVCore – Audio Video Consultants in Pune?

• Professional site survey

• Expert installation & alignment

• Genuine products with manufacturer warranty

• Complete AV integration services

• Reliable after-sales technical support

If you are searching for a high-brightness WXGA short throw laser projector in Pune, the ViewSonic LS711WP delivers powerful performance, flexible installation, and long-term reliability.

Contact AVCore today for pricing, demo, and customized AV solutions tailored to your space.

If you are planning a professional 4K projector installation in Pune or anywhere in Maharashtra, contact AVCore – Audio Video Consultants today for expert guidance and customized solutions.
