ViewSonic LS711HDP 4200 Lumens Short Throw Full HD Laser Projector for Professional Installations

ViewSonic LS711HDP Projector 4,200 ANSI Lumens 1080p Short Throw Laser Installation Projector

The ViewSonic LS711HDP is a high-brightness, lamp-free short throw laser projector designed for commercial installations, educational institutions, retail spaces, galleries, gyms, restaurants, and corporate environments. Built on advanced 3rd generation laser phosphor technology, this projector delivers 4,200 ANSI Lumens, Full HD clarity, and an impressive 30,000-hour lifespan — all in a compact and lightweight chassis.

At AVCore – Audio Video Consultants in Pune, Maharashtra, we recommend the LS711HDP for clients who require powerful brightness, seamless edge blending capability, flexible installation, and long-term reliability with minimal maintenance.

Overview

The LS711HDP belongs to ViewSonic’s Luminous Superior series — a lineup engineered for professional environments where brightness, durability, and cost-efficiency are essential.

Its 0.49 short throw ratio enables a 100-inch image from just 1.1 meters away. This makes it ideal for compact rooms, classrooms, interactive spaces, and retail installations where avoiding shadows and glare is critical.

The sealed optical engine with IP6X dust resistance, 24/7 operation capability, and energy-efficient laser light source make it a dependable solution for demanding applications.

Key Features

1. 3rd Generation Laser Phosphor Technology

The LS711HDP uses advanced 3rd-gen laser phosphor technology that:

• Increases brightness efficiency by approximately 20%

• Improves color consistency

• Reduces projector size by 32% compared to previous generations

• Delivers up to 30,000 hours in SuperEco mode

• Eliminates lamp replacement costs entirely

Instant power on/off ensures no warm-up or cool-down time, making it perfect for dynamic commercial environments.

2. 4,200 ANSI Lumens – Bright in Any Environment

With 4,200 ANSI Lumens (4,800 center lumens), this projector performs exceptionally well in:

• Classrooms with ambient light

• Retail stores with large windows

• Conference rooms

• Gyms and fitness studios

• Museums and galleries

Even in well-lit environments, the Full HD 1080p resolution ensures sharp text and vibrant visuals.

3. High Native Contrast – Powered by Texas Instruments 0.65″ DMD

The projector uses a premium 0.65″ DMD chip from Texas Instruments, delivering:

• Superior native contrast

• Deeper blacks

• Brighter whites

• Improved text legibility

• Better image depth

This makes it especially suitable for data-heavy presentations and detailed visuals.

4. 0.49 Short Throw – No Shadows, No Glare

The ultra-short 0.49 throw ratio allows:

• 100″ screen from 1.1m distance

• Reduced presenter shadows

• Minimal eye glare

• Seamless edge blending capability

• Ideal for interactive and collaborative spaces

It is perfect for classrooms, training centers, and compact meeting rooms.

5. Up to 300” Ultra-Large Display

The LS711HDP supports image sizes from 35” to 300”. Compared to large-format LED panels, it offers:

• Lower cost per inch

• Easier installation

• Scalable display solutions

• Immersive viewing experience

6. Installation Flexibility

Designed for professional integrators, this projector supports:

• Horizontal Keystone: ±15°

• Vertical Keystone: ±15°

• 4 Corner Adjustment

• 360° Projection

• 90° Portrait Mode

• Fixed optical zoom with digital zoom 0.8x–2.0x

These features make it suitable for:

• Projection mapping

• Creative advertising

• Stage design

• Ceiling projection

• Floor projection

• Digital signage

AVCore provides complete installation and calibration services across Pune and Maharashtra.

7. 24/7 Continuous Operation

The advanced cooling system supports round-the-clock operation without image degradation.

Ideal for:

• Retail stores

• Airports

• Malls

• Museums

• Public information displays

8. IP6X Sealed Optical Engine

The dust-resistant sealed engine:

• Prevents dust intrusion

• Reduces maintenance

• Maintains consistent image quality

• Extends internal component lifespan

This is particularly valuable in Indian environments where dust exposure can be high.

9. Energy Efficient & Cost Saving

• Power Consumption (Normal): 210W

• Standby: <0.5W

• Up to 40% lower power usage compared to lamp-based projectors

No lamp replacement + low power = reduced total cost of ownership.

10. Direct Power for Wireless HDMI Dongles

Built-in USB-A (5V/1.5A) output:

• Powers wireless HDMI dongles

• Eliminates separate power adapters

• Keeps installation clean and clutter-free

Technical Specifications

Projection

• Projection System: 0.65″ 1080p DLP

• Native Resolution: 1920 × 1080 (Full HD)

• Brightness: 4,200 ANSI Lumens

• Center Lumens: 4,800

• Contrast Ratio: 3,000,000:1

• Display Color: 1.07 Billion Colors

• Light Source: Laser Phosphor

• Light Source Life:

  • Normal: 20,000 hours

  • SuperEco: 30,000 hours

Lens & Throw

• Throw Ratio: 0.496

• Projection Offset: 132% ±10%

• Image Size: 35” – 300”

• Throw Distance: 0.38 – 3.29m

• 100” Screen at: 1.10m

• Optical Zoom: Fixed

• Digital Zoom: 0.8x – 2.0x

Audio

• Built-in Speaker: 15W

• Audio Out (3.5mm): Yes

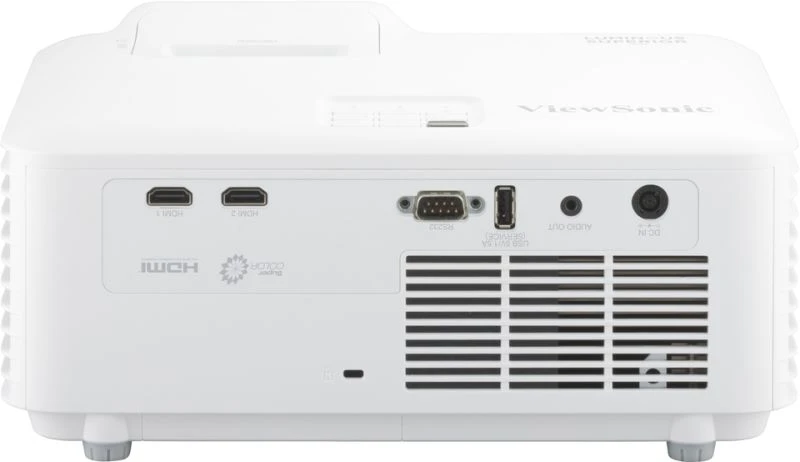

Connectivity

• HDMI 1.4 × 2 (HDCP 1.4)

• USB Type-A (Power 5V/1.5A)

• USB Type-A (Service)

• RS232 (DB 9-pin)

• DC In

Performance

• Input Lag: 49.5ms

• Noise Level:

  • Normal: 30dB

  • Eco: 24dB

• 24/7 Operation: Yes

Physical

• Net Weight: 3.15 kg

• Dimensions: 286 × 216 × 129 mm

• Operating Temperature: 0–40°C

What’s in the Box

• ViewSonic LS711HDP Projector

• Power Cord

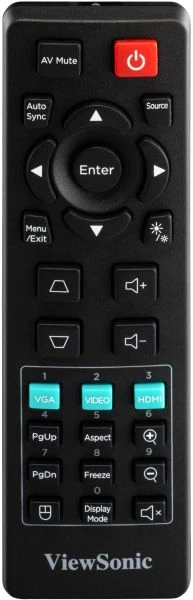

• Remote Control

• Quick Start Guide (QSG)

• Lens Cover

• Warranty Card

Optional Accessories:

• Wall/Ceiling Mount (PJ-WMK-007)

• Carry Bag (PJ-CASE-008)

AVCore can supply mounts, screens, and complete AV integration solutions.

Frequently Asked Questions (FAQs)

1. Is the LS711HDP suitable for classrooms in Pune?
   Yes. With 4,200 lumens and short throw capability, it works excellently in well-lit classrooms and training centers.
2. Does this projector require lamp replacement?
   No. It uses a laser light source with up to 30,000 hours lifespan.
3. Can it be used for 24/7 digital signage?
   Yes. It is designed for continuous 24/7 operation.
4. Is it good for edge blending?
   Absolutely. The short throw design and high brightness make it suitable for seamless edge blending applications.
5. Does it support ceiling installation?
   Yes. It supports 360° projection and portrait mode.
6. How noisy is the projector?
   It operates at 30dB in normal mode and 24dB in Eco mode, which is relatively quiet for commercial use.
7. Can AVCore handle installation in Maharashtra?
   Yes. AVCore – Audio Video Consultants provide complete consultation, supply, and professional installation services across Pune and Maharashtra.

Why Buy from AVCore – Audio Video Consultants in Pune?

• Professional site assessment

• Expert installation & calibration

• Genuine products with warranty

• Complete AV integration support

• After-sales technical assistance

If you are looking for a high-brightness short throw laser projector in Pune, the ViewSonic LS711HDP is a powerful, reliable, and cost-effective solution for modern commercial environments.

For pricing, demo, or consultation, contact AVCore – your trusted Audio Video Consultants in Maharashtra.

If you are planning a professional 4K projector installation in Pune or anywhere in Maharashtra, contact AVCore – Audio Video Consultants today for expert guidance and customized solutions.
