ViewSonic LS510WP – 4,200 ANSI Lumens LED Projector for Business & Education

The ViewSonic LS510WP is a high-brightness, lamp-free WXGA projector designed for classrooms, training rooms, boardrooms, retail spaces, and 24/7 commercial applications. Powered by 3rd generation LED technology, it delivers 4,200 ANSI Lumens, exceptional color performance, and up to 30,000 hours of maintenance-free operation.

For businesses, schools, and institutions in Pune, Maharashtra, AVCore – Audio Video Consultants provides professional consultation, installation, and after-sales support to ensure optimal performance and long-term reliability.

Overview

The LS510WP combines brightness, sustainability, and operational efficiency in a compact form factor. Unlike traditional lamp-based projectors, this model uses an advanced LED light source, eliminating mercury, reducing power consumption, and removing the need for costly lamp replacements.

Whether you’re conducting presentations in a bright conference room or delivering lectures in a classroom, the LS510WP ensures clear visuals, vibrant colors, and dependable operation.

Key Features & Benefits (Detailed)

1️⃣ 4,200 ANSI Lumens – Bright in Any Environment

With 4,200 ANSI Lumens, the LS510WP produces sharp and vivid images even in well-lit rooms. This makes it ideal for:

• Classrooms with open windows

• Corporate meeting rooms

• Training centers

• Retail and digital signage environments

The 3,000,000:1 contrast ratio enhances detail in dark and bright scenes alike, ensuring presentations look professional and easy to read.

2️⃣ 3rd Generation LED Technology – Sustainable & Efficient

The LS510WP uses advanced OSRAM Ostar Projection Power LED technology, delivering:

• Up to 30,000 hours light source life

• Mercury-free design

• Lower energy consumption than lamp projectors

• Reduced heat generation

• Consistent brightness over time

If used 8 hours daily, 5 days a week, the projector can last over a decade without light source replacement.

3️⃣ Maintenance-Free Operation

Unlike lamp projectors that require periodic lamp replacements (typically every 3,000–5,000 hours), the LS510WP:

• Requires no lamp changes

• Reduces service downtime

• Lowers total cost of ownership

• Eliminates disposal concerns related to mercury lamps

This makes it a smart long-term investment for institutions and corporates.

4️⃣ Instant Power On/Off

Start meetings without delay. The projector:

• Powers on instantly at full brightness

• Requires no cool-down period

• Enables quick shutdown

This is particularly useful in classrooms with back-to-back sessions.

5️⃣ Wide Color Gamut – True-to-Life Colors

ViewSonic’s proprietary color technology ensures:

• Vivid and natural color reproduction

• Better differentiation in charts and graphs

• Enhanced visual engagement

Presentations, videos, and educational content appear more dynamic and professional.

6️⃣ 360° Projection Capability

The LS510WP can be installed at virtually any angle:

• Ceiling projection

• Wall projection

• Floor projection

• Portrait-style creative installations

This flexibility supports museums, exhibitions, simulation rooms, and creative spaces.

7️⃣ IP5X Sealed Optical Engine

The sealed optical engine prevents dust from entering critical components. Benefits include:

• Long-term image clarity

• Stable thermal performance

• Reduced maintenance needs

• Ideal for dusty environments

8️⃣ 24/7 Continuous Operation

Designed for demanding applications, the projector supports continuous 24/7 usage without image degradation—ideal for:

• Control rooms

• Digital signage

• Monitoring stations

• Commercial environments

9️⃣ Easy Software Updates via USB

Firmware can be updated via laptop and USB connection—no need to send the projector to a service center.

🔟 USB Power Output (5V/2A)

The built-in USB Type-A port powers:

• Chromecast

• Amazon Fire TV Stick

• HDMI wireless dongles

No additional power adapter required.

Technical Specifications (Detailed)

Display & Projection

• Projection System: 0.65″ WXGA

• Native Resolution: 1280 x 800

• Supported Resolution: VGA to Full HD (1920×1080)

• Brightness: 4,200 ANSI Lumens

• Contrast Ratio: 3,000,000:1

• Display Colors: 1.07 Billion

• Image Size: 30″ to 300″

• Throw Distance: 1m – 10.98m

• Throw Ratio: 1.55 – 1.70

• Optical Zoom: 1.1x

• Digital Zoom: 0.8x – 2.0x

• Projection Offset: 100% ±5%

Keystone & Installation

• Vertical Keystone: ±40°

• 360° Projection

• Sealed IP5X Optical Engine

Light Source

• Type: LED

• Lifespan (Normal Mode): 30,000 hours

Audio

• Built-in Speaker: 2W

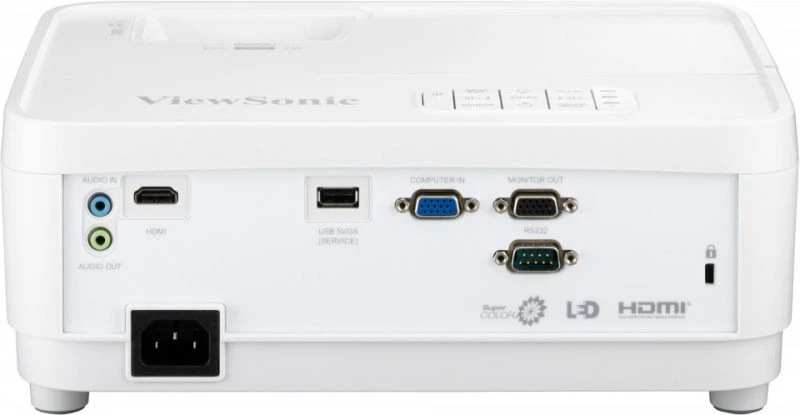

Connectivity

• HDMI 1.4 (HDCP 1.4) – 1

• Computer In – 1

• Monitor Out – 1

• Audio In (3.5mm) – 1

• Audio Out (3.5mm) – 1

• USB Type A (5V/2A Power + Service) – 1

• RS232 – 1

Noise Levels

• Normal Mode: 34dB

• Eco Mode: 28dB

Power

• Consumption (Normal): 240W

• Standby: <0.5W

• Voltage: 100-240V

Physical

• Dimensions: 293 x 221 x 115 mm

• Net Weight: 2.65 kg

What’s in the Box

When you purchase the LS510WP from AVCore – Audio Video Consultants, Pune, you receive:

• ViewSonic LS510WP Projector

• Power Cord

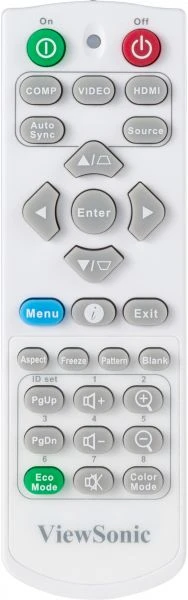

• Remote Control

• Quick Start Guide (QSG)

• Warranty Card

Optional Accessories:

• Wall/Ceiling Mount (PJ-WMK-007)

• Carry Bag (PJ-CASE-008)

Ideal Use Cases

• Schools & Colleges

• Corporate Boardrooms

• Training Institutes

• Retail Showrooms

• Healthcare Facilities

• Digital Signage Installations

Frequently Asked Questions (FAQ)

1. Is the LS510WP suitable for bright rooms?

Yes. With 4,200 ANSI Lumens, it performs very well in moderately to brightly lit environments.

2. Does it require lamp replacement?

No. It uses LED technology with up to 30,000 hours lifespan.

3. Can it run continuously?

Yes. It supports 24/7 operation.

4. Can I connect a laptop?

Yes. It supports HDMI and Computer In connections.

5. Does it support wireless streaming?

Yes, via HDMI wireless dongles powered by the built-in USB 5V/2A output.

6. Is it good for gaming?

It has a 16ms input lag, suitable for casual gaming and multimedia use.

7. What screen size can it project?

From 30 inches up to 300 inches.

8. Does it support ceiling mounting?

Yes. Ceiling mount accessory is available.

Why Buy from AVCore – Audio Video Consultants, Pune?

AVCore provides:

• Expert consultation for business & education environments

• Professional installation services in Pune & Maharashtra

• After-sales technical support

• Customized AV solutions for institutions

Final Summary

The ViewSonic LS510WP is a powerful, sustainable, and maintenance-free WXGA projector built for modern classrooms and business environments. With high brightness, LED longevity, sealed optical design, and flexible installation options, it offers exceptional value and reliability for long-term use.

If you are planning a professional 4K projector installation in Pune or anywhere in Maharashtra, contact AVCore – Audio Video Consultants today for expert guidance and customized solutions.
