ViewSonic LSC600WU 6000 ANSI Lumens WUXGA Laser Installation Projector

The ViewSonic LSC600WU is a powerful, lamp-free laser installation projector engineered for large venues, boardrooms, auditoriums, educational campuses, galleries, and corporate environments. Delivering 6,000 ANSI Lumens with crisp WUXGA (1920 x 1200) resolution, this projector ensures bright, vibrant visuals even in well-lit spaces.

Designed for modern collaboration and long-term reliability, the LSC600WU combines 2nd generation laser phosphor technology, flexible installation tools, centralized LAN control, and ultra-large screen capability up to 300 inches—all while offering a lower cost-per-inch compared to commercial flat panels.

At AVCore – Audio Video Consultants in Pune, Maharashtra, we recommend the LSC600WU for organizations seeking performance, durability, and installation flexibility in one future-ready solution.

Key Highlights at a Glance

• 6,000 ANSI Lumens for bright images in ambient light

• WUXGA (1920 x 1200) native resolution

• Up to 300” screen size

• 21:9 aspect ratio support – ideal for Microsoft Teams Rooms

• 1.6x optical zoom + H/V lens shift

• H/V keystone ±30° + 4-corner adjustment

• 2nd Gen Laser Phosphor – up to 30,000 hours (Eco)

• Centralized LAN control (Crestron, PJLink, Extron, ATEN)

• 360° projection capability

• Built-in 16W speaker

Bright Images for Large Venues

With 6,000 ANSI Lumens (6,500 center lumens), the LSC600WU produces sharp, high-contrast visuals even in brightly lit rooms. Whether it’s a corporate presentation, lecture, product launch, or simulation environment, the projector maintains clarity and color accuracy.

• Contrast Ratio: 3,000,000:1

• Display Color: 1.07 Billion Colors

• Supports up to 4K input signals (3840 x 2160)

This makes it suitable for:

• Boardrooms

• Lecture halls

• Corporate training centers

• Galleries & experience centers

• Simulation and visualization rooms

Ultra-Large 300” Screen with Lower Cost-per-Inch

The LSC600WU can project images from 30 inches up to 300 inches, giving you cinematic-scale visuals at a fraction of the cost of large LED displays.

• Image Size: 30″–300″

• Throw Ratio: 1.08–1.76

• Throw Distance: 0.70m – 11.37m

• 100” screen at just 2.33m

For institutions and enterprises in Pune and across Maharashtra, this projector provides a scalable display solution without the expense of massive flat panels.

21:9 Aspect Ratio – Perfect for Microsoft Teams Rooms

Modern meeting rooms demand smarter display formats. The LSC600WU supports 21:9 aspect ratio, optimized for Microsoft Teams Rooms (Front Row Mode).

This allows simultaneous display of:

• Presentation content

• Participant video feeds

• Chat windows

• Hand-raise notifications

The result is a more engaging and collaborative meeting experience.

Advanced Installation Flexibility

Installation is effortless thanks to professional-grade adjustment features:

Optical & Mechanical Adjustments

• 1.6x Optical Zoom

• Vertical Lens Shift: +45%, 0%

• Horizontal Lens Shift: ±21%

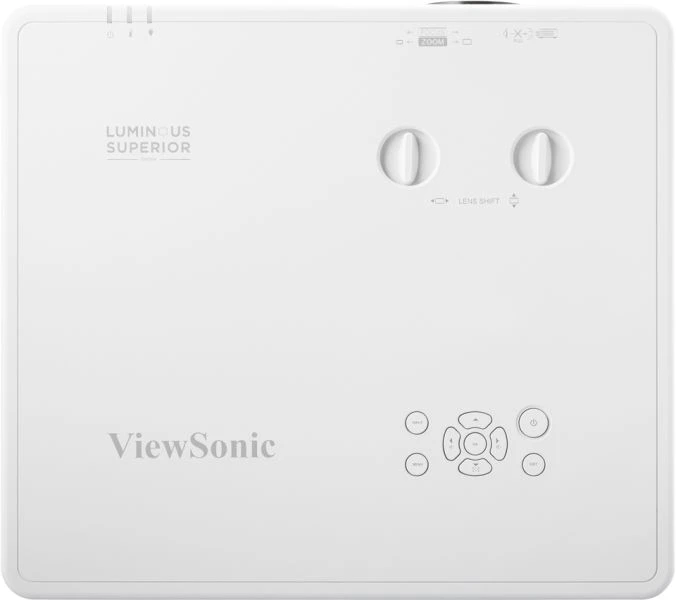

• Tool-free lens shift knobs

Image Correction

• H Keystone: ±30°

• V Keystone: ±30°

• 4-corner adjustment

• Digital Zoom: 1.0x–4.0x

360° Projection

The LSC600WU can be mounted in virtually any orientation, including portrait or ceiling installations.

This flexibility makes it ideal for challenging architectural spaces.

2nd Generation Laser Phosphor Technology

The LSC600WU uses advanced 2nd generation laser phosphor technology, offering:

• Up to 20,000 hours (Normal Mode)

• Up to 30,000 hours (Eco Mode)

• Instant power on/off

• No lamp replacement costs

• Improved heat resistance

• ~20% brightness enhancement over previous generation

• Compact and durable laser module

This significantly reduces maintenance and total cost of ownership.

Centralized LAN Control & System Integration

For IT managers and AV integrators, the projector supports:

• Crestron

• PJLink

• Extron

• ATEN

Control Interfaces:

• RJ45 (LAN Control)

• RS232

• USB Type B (Service)

This allows seamless integration into enterprise AV ecosystems.

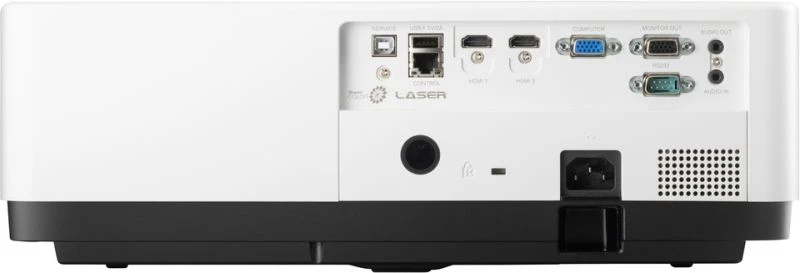

Connectivity & I/O Ports

Inputs

• HDMI x2 (HDMI 1.4 / HDCP 1.4)

• Computer In (shared with component)

• Audio In (3.5mm)

• USB Type-A (5V/2A)

Outputs

• Monitor Out

• Audio Out (3.5mm)

Control

• RJ45 (LAN)

• RS232

• USB Type B (Service)

Built-in Audio

• 16W Speaker

Detailed Technical Specifications

What’s in the Box?

• ViewSonic LSC600WU Projector

• Power Cord

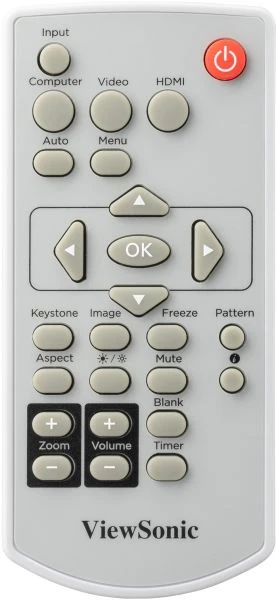

• Remote Control

• Quick Start Guide (QSG)

• Air Filter

• Warranty Card (Region-specific)

Optional Accessories

• Replacement Air Filter

• Wall/Ceiling Mount: PJ-WMK-007

Frequently Asked Questions (FAQs)

1. Is the ViewSonic LSC600WU suitable for large auditoriums?
   Yes. With 6,000 ANSI Lumens and up to 300” projection size, it performs excellently in large venues.
2. Does it require lamp replacement?
   No. It uses laser phosphor technology with up to 30,000 hours lifespan.
3. Can it be integrated into centralized control systems?
   Yes. It supports Crestron, PJLink, ATEN, and Extron via LAN and RS232.
4. Is it compatible with 4K content?
   It supports 4K input signals (3840 x 2160) and downscales to WUXGA resolution.
5. Is it suitable for Microsoft Teams Rooms?
   Absolutely. The 21:9 aspect ratio is optimized for Teams Front Row mode.
6. Can it be ceiling mounted?
   Yes. It supports 360° projection and is compatible with ceiling mount accessories.
7. Is it noisy?
   No. It operates at 35dB in Normal mode and 25dB in Eco mode.

Why Buy from AVCore – Audio Video Consultants in Pune?

At AVCore – Audio Video Consultants in Pune, Maharashtra, we provide:

• Professional site assessment

• Expert installation services

• Corporate AV integration

• After-sales support

• Bulk and institutional pricing

We help businesses, educational institutions, and experience centers choose the right projector solution based on room size, lighting conditions, and usage requirements.

Final Verdict

The ViewSonic LSC600WU is a robust, high-brightness WUXGA laser installation projector built for professional environments. With powerful brightness, long lifespan, 21:9 meeting optimization, and flexible installation features, it stands out as a future-ready display solution for modern organizations.

If you are planning a professional 4K projector installation in Pune or anywhere in Maharashtra, contact AVCore – Audio Video Consultants today for expert guidance and customized solutions.
